Key Specifications
Specification

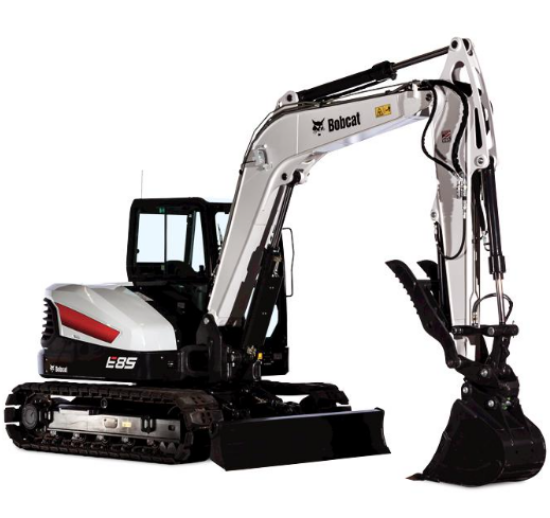

E85 Details
Operating Weight
18,960 lb
Engine Gross Power
59.4 hp to 66 hp
Bucket Digging Force
14,509 lbf
Arm Digging Force
8,069 lbf
Maximum Dig Depth
186 in (15.5 ft)
Max Reach at Ground Level
286.8 in (23.9 ft)
Max Dump Height
198 in (16.5 ft)
Travel Speed (Low/High)
1.7 mph / 2.9 mph
Auxiliary Standard Flow
25.1 gal/min
Auxiliary Pressure
3,045 psi
Fuel Tank Capacity
29.1 gal
Dimensions
