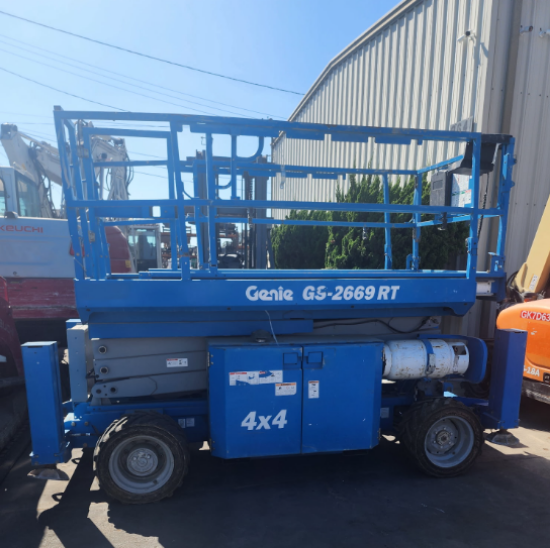

Lift GS-2669 RT 4x4 Outriggers

Outrigger Specifications

• Outrigger Type: Automatic leveling hydraulic outriggers
• Max. Outrigger Leveling (Front to Back): 5.3°
• Max. Outrigger Leveling (Side to Side): 11.7°
• Machine Length with Outriggers: 12 ft 4 in (3.76 m)
• Machine Weight with Outriggers: 7,535 lb (3,629 kg)

Key Performance Specifications

• Max. Working Height: 32 ft 2 in (10 m)
• Platform Capacity: 1,500 lb (680 kg)
• Extension Deck Capacity: 300 lb (136 kg)
• Platform Dimensions: 110 x 63 in (2.79 x 1.6 m) steel frame
• Slide-Out Extension Deck: 5 ft (1.52 m)

Machine Dimensions

• Width: 5 ft 9 in (1.75 m)
• Length (Stowed): 10 ft 3 in (3.12 m)
• Wheelbase: 7 ft 6 in (2.29 m)
• Ground Clearance: 9.5 in (24 cm)
