PBB/Lift S40- JLG Diesel

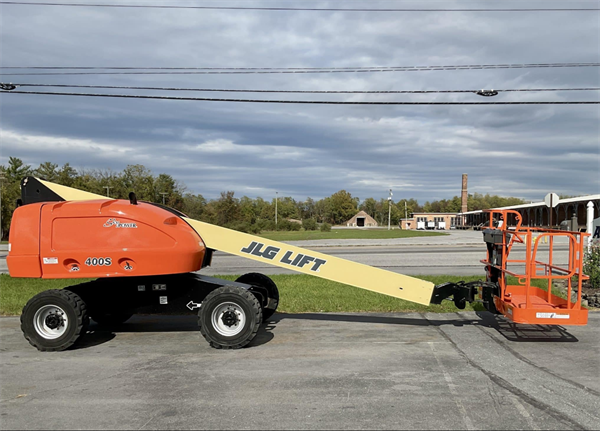

The JLG 400S is a diesel-powered, straight telescopic boom lift.offers a 46 ft working height, 33.5 ft of horizontal reach, and a platform capacity of 500 lbs

Start date: *

End date: *

Daily :	$325.00
Weekly :	$975.00
Monthly :	$1,995.00

Qty:

i h

Specifications

Reach & Capacity Specifications

Platform Height: 40 ft
Working Height: 46 ft
Horizontal Outreach: 33 ft 3 in
Platform Capacity (Unrestricted): 600 lbs
Platform Capacity (Restricted): 1,000 lbs

Engine & Power

Diesel Engine: Deutz D2.9L4 Tier 4 Final 49 HP
Fuel Tank Capacity: 22 gal
Hydraulic Reservoir: 36 gal

Dimensions & Weight

Machine Weight: 14,520 lbs
Overall Length: 24 ft 10 in
Overall Width: 7 ft 7 in
Stowed Height: 8 ft 1 in

Operational & Performance

Drive Speed (4WD): 4.5 mph
Gradeability (4WD): 45%
Turning Radius (Outside): 15 ft 11in
Tire Size: 12 x16.5 Pneumatic Lug Tread
